Sliding Door Guide Rail Making Machine

Door Guide Rail Making Machine

Chinese Door Guide Rail Roll Forming Machine Suppliers.  manufacturing various types of Door Guide Rail Making Machine. High Quality is for producing door guide rails, it can be matched with roller shutter door.

Door Guide Rail Roll Forming Machine

Automatic Door Shutter Guide Rails Roll Forming Machine (60 mm )

LOTOSFORMING export door rail roll forming machine. We recommend the gearbox driving system and flying shear system to keep our machine work with high speed.

Roller Shutter Door Guide Rail

Door Guide Rail Roller Shutter Machine (70 mm )

Guide Rail as the necessary component of the roller shutter door solution, not only to guide the door, it must enable wind resistance and security protection. LOTOSFORMING has a great experiment to produce roller shutter door guide rail.

Door Guide Rail Cold Roll Forming Machine

China Roll Forming Machines Shutter Door Guide Rail (80 mm )

A wide variety of Guide Rails Shutter Door Roll Forming Machine options is available to you. U Rail Roll Forming Machine can produce many types of roller shutter guide rails.

Chinese Door Guide Rail Roll Forming Machine Suppliers

Summary of Chinese Shutter door Guide rail making machine

Material: Galvanized Coil

Material Thickness: 0.8-1.2mm

Main roll forming machine Power: 7.5 KW

Forming Speed: 4-7m/min

Dimension: 7×0.7×0.8 m (L*W*H)

Weight: 4-5 T

Main Parts Door Guide Rail Roll Forming Machine

  1. Manual Decoiler
  2. Roll Forming System
  3. Hydraulic cutter
  4. Control system
  5. Output table

Working Flowing Guide rail roll forming machine

Manual Un coiler    — >  >  Feeding   — >  >   Roll Forming  — >  >  Cutting — >  >   Output table

Door Guide Rail Roll Forming

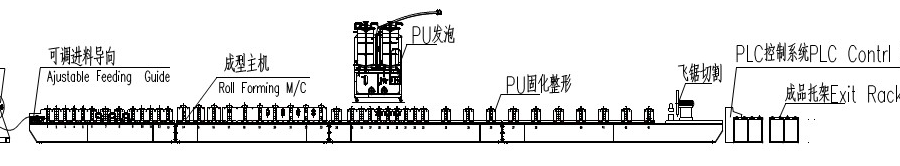

high speed PU Foam Door Shutter roll forming Machine
Technical Information About Guide Rail Roll Forming Machine
Un coiler TypeManual
Loading capacity3Ton Impassive to expanding
Axis Diameter60 mm
Main Axis materialFirst grade 45# steel heated and quenched
Forming Speed4-7 m/min
Cutting typeHydraulic stop cutting
PLC systemJapan PANASONIC
Rating
Guide rail roll forming machine

Product Name: Door Guide Rail Roll Forming Machine

Product Description: LOTOSFORMING export door rail roll forming machine. We recommend gearbox driving system and flying shear system to keep our machine work with high speed.
